Industrial floor drain DRS-S / DRSK-S

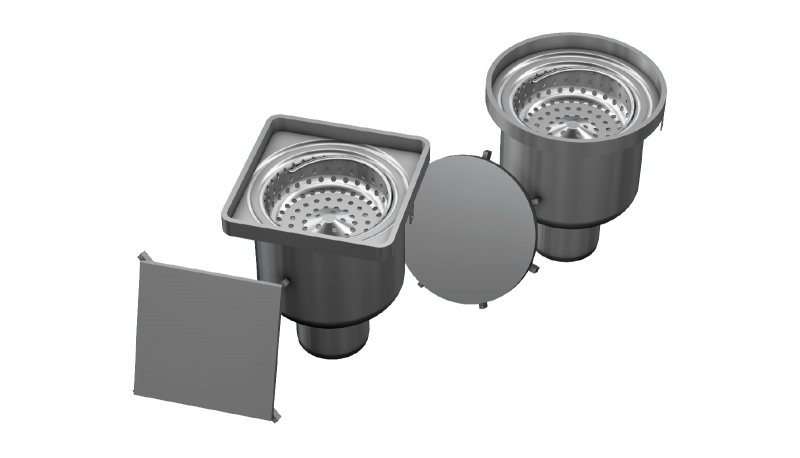

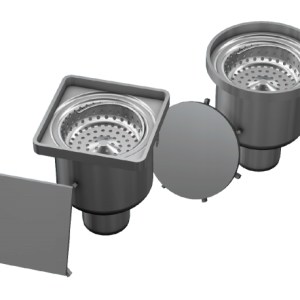

Industrial floor drain, single-part, Model DRS, according to EN 1253. Inlet rim solid 25 x 8 mm. To achieve a high self-cleansing effect, the bottom of the housing has large and deep-drawn inside radii. Stainless steel air trap and perforated plate silt box. Vertical drain necks. Surface grain blasted.

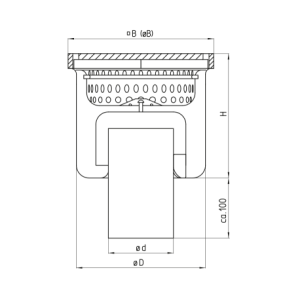

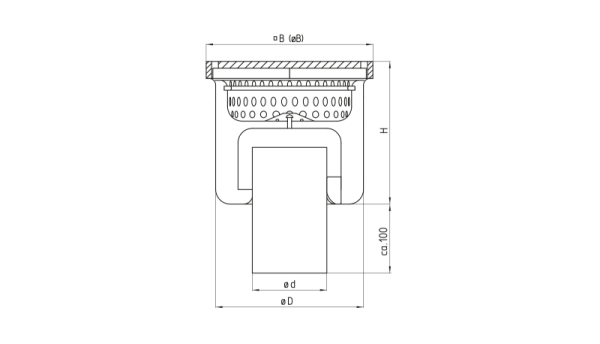

Model	DN	Ø d [mm]	B [mm]	Ø B [mm]	Ø D [mm]	H [mm]	Silt box volume [ l ]	Flow rate [l/s]	Fire protection optional
DR-070-E-S	70	75	180	–	153	165	0,5	> 1,5	–
DR-070-RD-S	70	75	–	196	153	165	0,5	> 1,5	–
DR-100-E-S	100	110	246	–	218	210	1,5	> 2,8	R90
DR-100-RD-S	100	110	–	270	218	210	1,5	> 2,8	R90
DR-150-E-S	150	160	310	–	283	250	2,75	> 8,2	–
DR-150-RD-S	150	160	–	331	283	250	2,75	> 8,2	–
DR-200-E-S	200	200	410	–	356	315	6	> 12,5	–
DR-200-RD-S	200	200	–	410	356	315	6	> 12,5	–
DRSK-100-E-S *	100	110	200	–	183	175	0,65	> 2,8	–
DRSK-100-RD-S *	100	110	–	235	183	175	0,65	> 2,8	–
