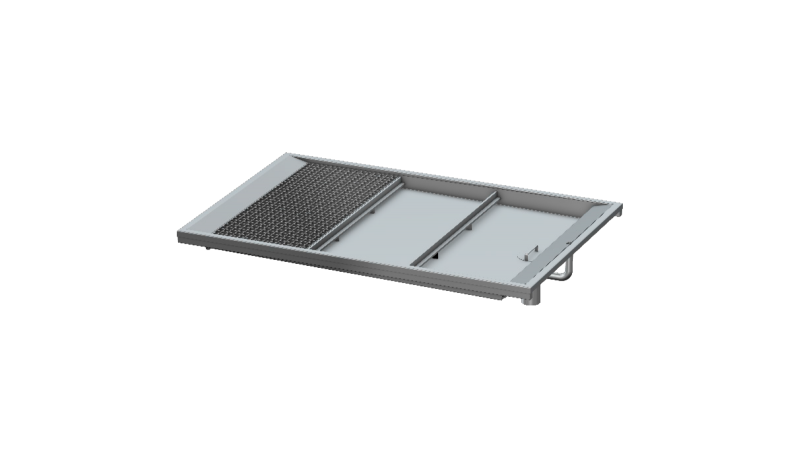

Hygiene walkthrough basin DDSB

Hygiene walkthrough basin, with suitable entry and exit surfaces in walkthrough direction, with continuous ridge, additional traverses for reinforcement in transverse direction. The edge of the bath is reinforced by a continuous profile on the inside. Adjustable height installation feet and wall anchors all round. Grating cover, anti-slip, 15 mm fluid covering. With vertical runoff support DN 70 and suitable stopper which can be removed for emptying residue. A separate overflow is welded. Grade 1.4571 (AISI 316 Ti), surface grain blasted.

Category: ,

Material:  1.4301 (AISI 304), 1.4571 (AISI 316 Ti).

Floor connection (optional)
