Heavy duty slot channel SRO

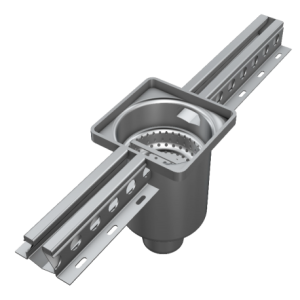

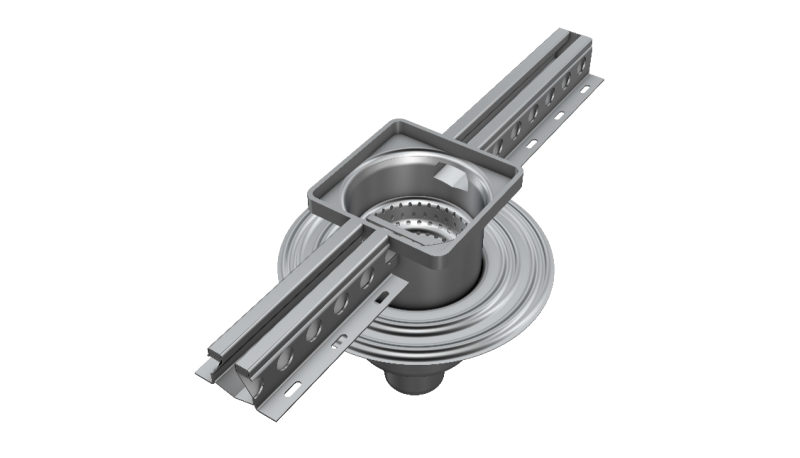

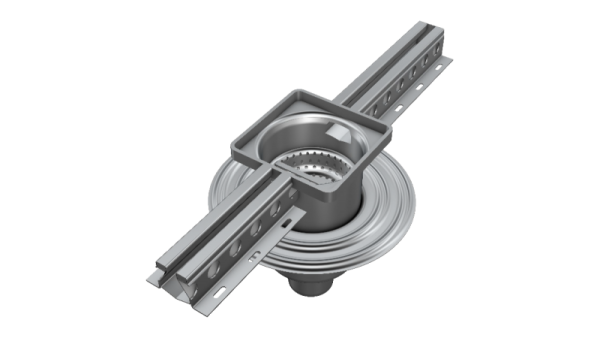

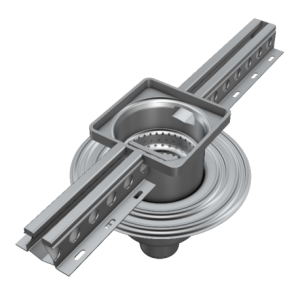

Heavy duty slot channel, Model SRO, inlet slot width 20 mm without spacers. Internally mounted edge protection reinforced with rectangular stainless steel profile and supported by a continuous 3 mm thick, perforated Z-profile, in order to achieve a better join between channel and floor. With wall anchors every 500 mm all round and L-shaped assembly supports for force-fit floor connection and adjustable height dowel installation feet every 1,000 mm. 70 mm profile width with fall 0.6%. Channel available welded, not flanged, with welded channel drain. Surface grain blasted.

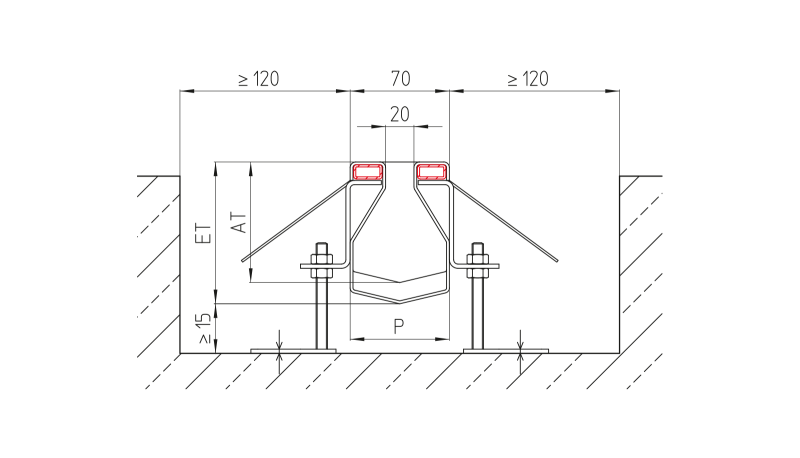

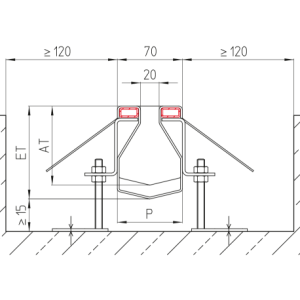

Channel model P [mm] AT 7) [mm] case ET [mm]
SRO 70 75 0.6%

Calculation ET: AT + L1 x 0.006 [AT; ET; L1 in mm]

Material: 1.4301 (AISI 304), 1.4571 (AISI 316 Ti)

Download product sheet (pdf)
