Vario channel VKR

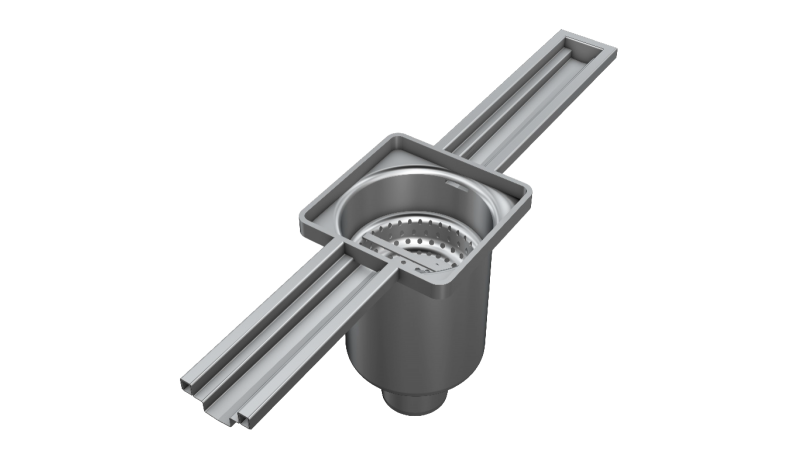

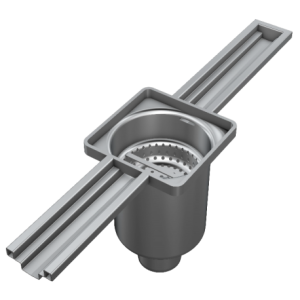

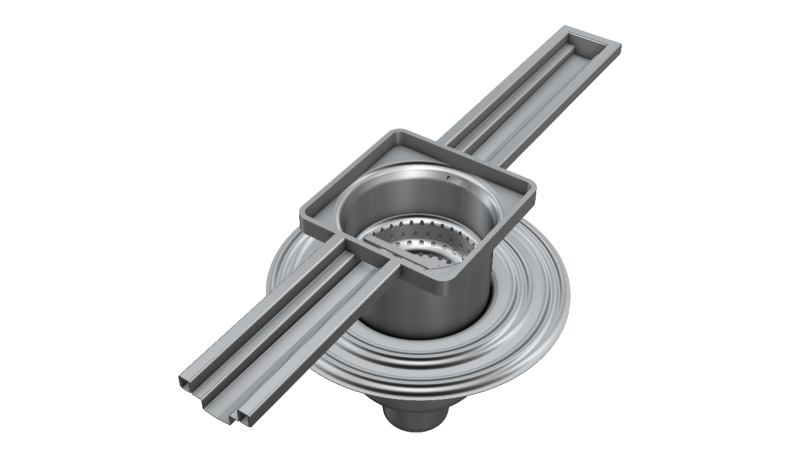

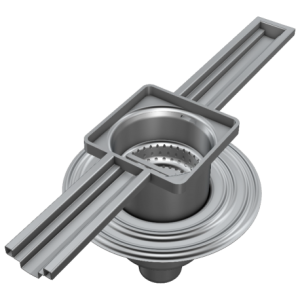

Vario channel, Model VKR, internally mounted edge protection reinforced with rectangular stainless steel profile. With wall anchors every 500 mm all round and U-shaped assembly supports for force-fit floor connection and adjustable height dowel installation feet every 1,000 mm. 40 mm profile width and fall 0.6%. Channel available welded, not flanged, with welded channel floor inlet. Surface grain blasted.

Category: ,

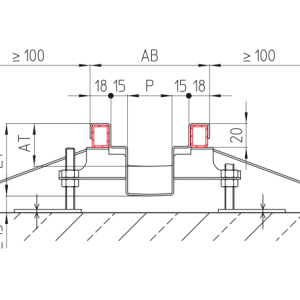

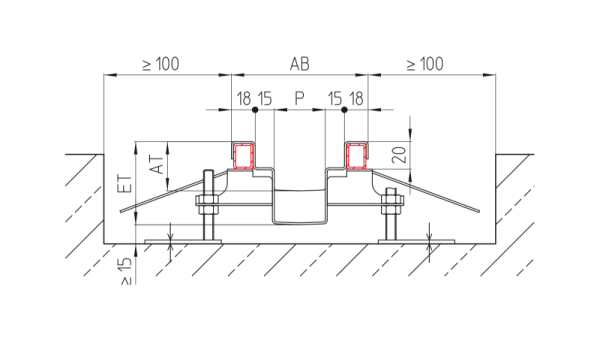

Channel model P [mm] AB [mm] AT case ET [mm]
VKR 40 106 40 0.6% max. 70

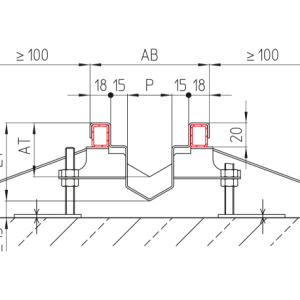

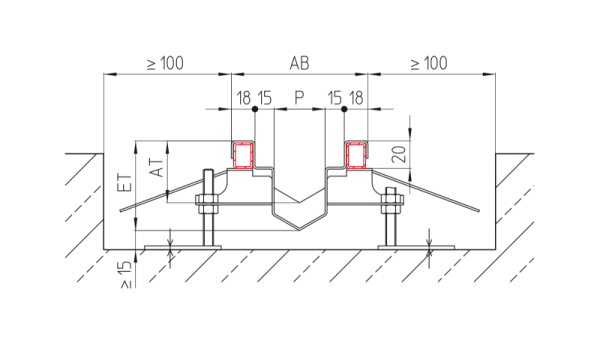

VKR 40 106 50 0.6% > 70

Calculation ET: AT + L1 x 0.006 [AT; ET; L1 in mm]

Material:  1.4301 (AISI 304), 1.4571 (AISI 316 Ti)

Download product sheet (pdf)
