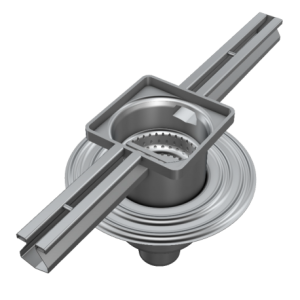

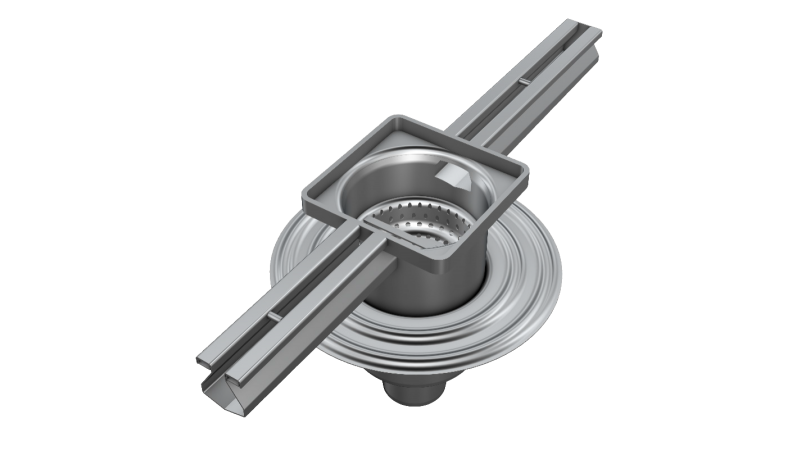

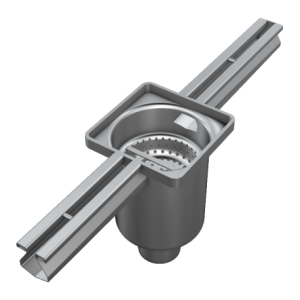

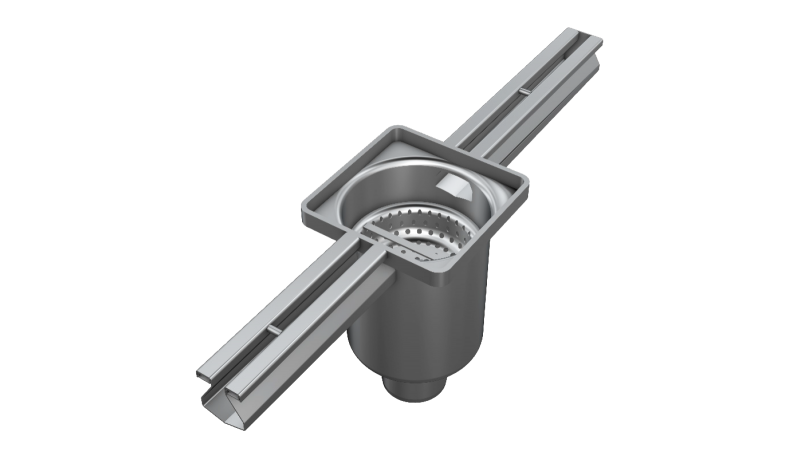

Slot channel SRD

Slot channel, Model SRD, inlet slot width 20 mm with spacers. Internally mounted edge protection reinforced with rectangular stainless steel profile. Channel with wall anchors every 500 mm all round and L-shaped assembly supports for force-fit floor connection and adjustable height dowel installation feet every 1,000 mm. Inner cross fall and fall 0.6%. Channel available welded, not flanged, with welded channel drain. Surface grain blasted.

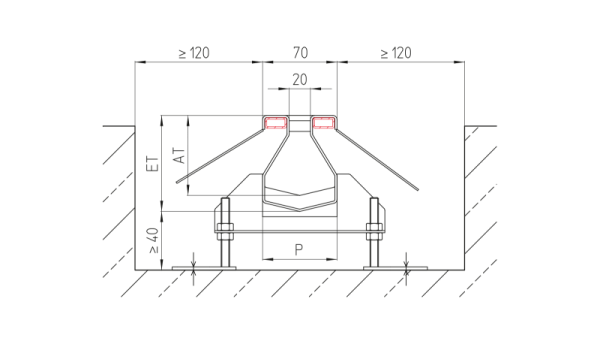

Channel model P [mm] AT 7) [mm] case ET [mm]
SRD-70 70 75 0.6%
SRD-90 90 110 0.6%

Calculation ET: AT + L1 x 0.006 [AT; ET; L1 in mm]

Material:  1.4301 (AISI 304), 1.4571 (AISI 316 Ti)
