Large Cork Glass Label drain GKSE-MIT-S

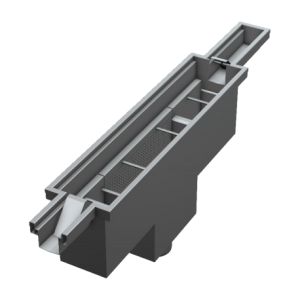

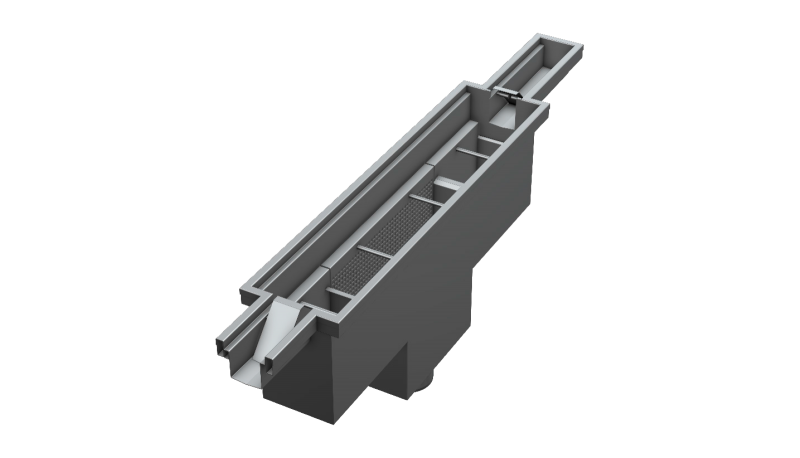

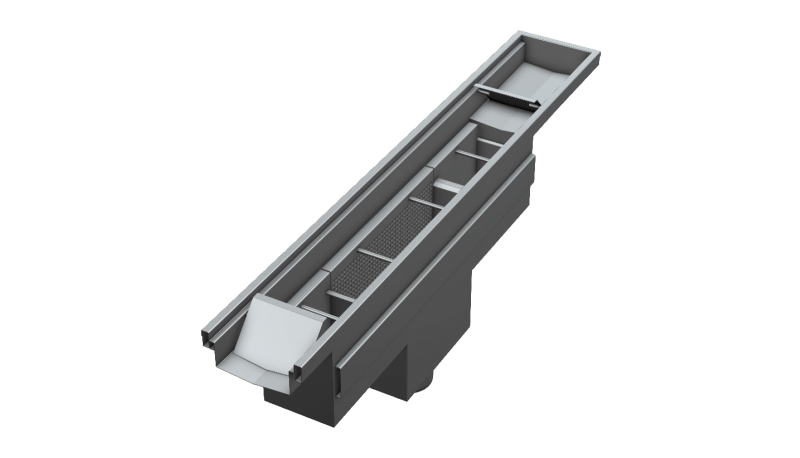

Large-Cork-Glass-Label drain, single-part, Model GKSE, according to EN 1253, welded at the end of the channel. With a foldable air trap, a large glass trap and a stainless steel trap for corks and labels. A shut-off flap on the channel inlet prevents large pieces slipping in when the baskets are removed. Edge protection reinforced with an internally mounted, welded rectangular profile and channel edge. Floor connection as channel. Vertical runoff support. Surface grain blasted.

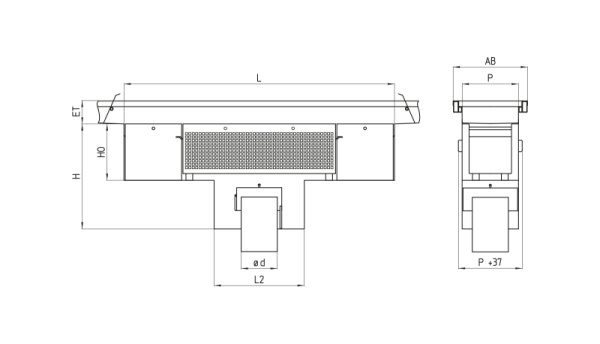

	Nominal size DN	Ø d [mm]	Profile P [mm]	AB [mm]	L [mm]	L2 [mm]	H [mm]	HO [mm]	Flow rate [l/s]	Label trap vol.[l]	Glass trap vol. [l]
GKSE-220-100-MIT-S	100	110	220	300	1200	400	465	250	> 2.8	17.8	2 x 9.7
GKSE-220-150-MIT-S	150	160	220	300	1200	400	465	250	> 8.2	17.8	2 x 9.7
GKSE-320-100-MIT-S	100	110	320	400	1200	450	535	300	> 2.8	35.3	2 x 18.9
GKSE-320-200-MIT-S	150	160	320	400	1200	450	535	300	> 8.2	35.3	2 x 18.9
GKSE-320-200-MIT-S	200	200	320	400	1200	450	535	300	> 12.5	35.3	2 x 18.9
GKSE-420-250-MIT-S	250	250	420	500	1400	600	560	300	> 20.2	57.4	2 x 30.9
GKSE-420-300-MIT-S	300	315	420	500	1400	600	560	300	> 29.8	57.4	2 x 30.9
