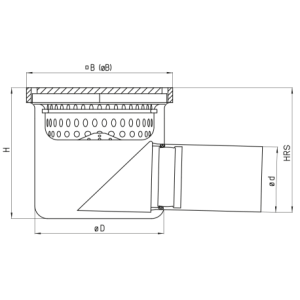

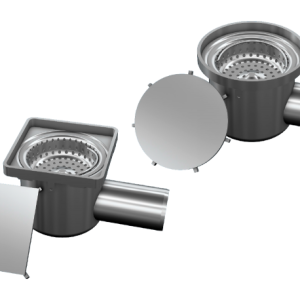

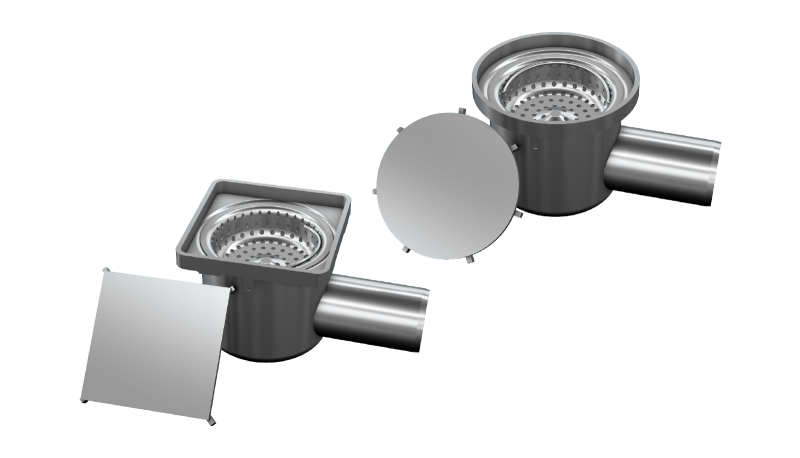

| Model | DN | Ø d [mm] |
diag. B [mm] |
Ø B [mm] |
Ø D [mm] |
H [mm] |
HRS | Silt box volume [ l ] | Flow rate [l/s] |
| DR-070-E-W | 70 | 75 | 180 | – | 153 | 185 | 167 | 0,5 | > 1,5 |
| DR-070-RD-W | 70 | 75 | – | 196 | 153 | 185 | 167 | 0,5 | > 1,5 |
| DR-100-E-W | 100 | 110 | 246 | – | 218 | 220 | 209 | 1,5 | > 2,8 |
| DR-100-RD-W | 100 | 110 | – | 270 | 218 | 220 | 209 | 1,5 | > 2,8 |
| DR-150-E-W | 150 | 160 | 310 | – | 283 | 290 | 274 | 2,75 | > 8,2 |
| DR-150-RD-W | 150 | 160 | – | 331 | 283 | 290 | 274 | 2,75 | > 8,2 |
| DR-200-E-W | 200 | 200 | 410 | – | 356 | 541 | 425 | 6 | > 12,5 |
| DR-200-RD-W | 200 | 200 | – | 410 | 356 | 541 | 425 | 6 | > 12,5 |
| DRSK-100-E-W * | 100 | 110 | 200 | – | 183 | 210 | 185 | 0,65 | > 2,8 |
| DRSK-100-RD-W * | 100 | 110 | – | 235 | 183 | 210 | 185 | 0,65 | > 2,8 |
* not all options available
Inlet rim: square, round
Material: 1.4301 (AISI 304), 1.4571 (AISI 316 Ti)
Description for use in tenders:
