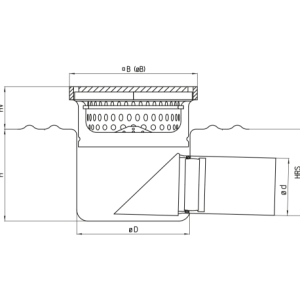

| Model | DN | Ø d [mm] |
B [mm] |
Ø B [mm] |
Ø D [mm] |
H [mm] |
HV [mm] |
HRS [mm] |
Silt box volume [ l ] | Flow rate [l/s] |
| H-070-EW | 70 | 75 | 180 | – | 153 | 160 | 60-80 | 142 | 0.5 | > 1.5 |
| H-070-RD-W | 70 | 75 | – | 196 | 153 | 160 | 60-80 | 142 | 0.5 | > 1.5 |
| H-100-EW | 100 | 110 | 246 | – | 218 | 178 | 60-80 | 167 | 1.5 | > 2.8 |
| H-100-RD-W | 100 | 110 | – | 270 | 218 | 178 | 60-80 | 167 | 1.5 | > 2.8 |
| H-150-EW | 150 | 160 | 310 | – | 283 | 233 | 60-80 | 217 | 2.75 | > 8.2 |
| H-150-RD-W | 150 | 160 | – | 331 | 283 | 233 | 60-80 | 217 | 2.75 | > 8.2 |
| HK-100-EW * | 100 | 110 | 200 | – | 190 | 189 | 60-80 | 164 | 0.65 | > 2.8 |
| HK-100-RD-W * | 100 | 110 | – | 235 | 190 | 189 | 60-80 | 164 | 0.65 | > 2.8 |
*Not all options available
Inlet rim: square, round
Material: 1.4301 (AISI 304), 1.4571 (AISI 316 Ti)
Flange variants (optional):
Description for use in tenders:

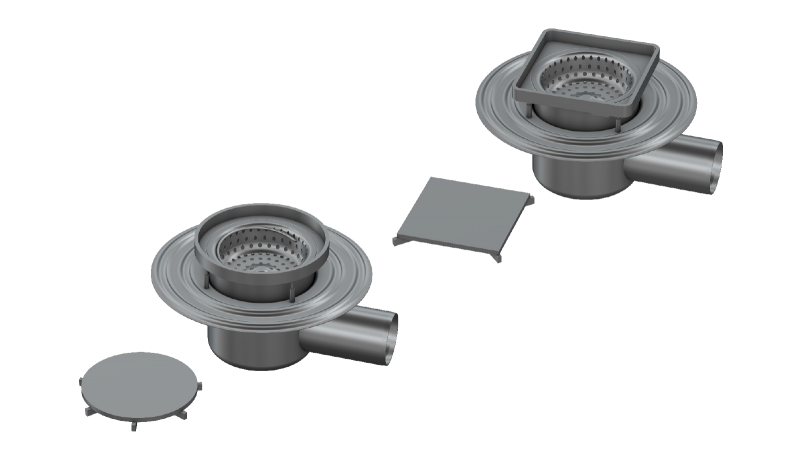

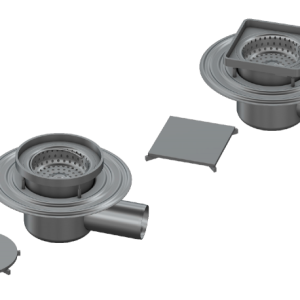

Adjustable height industrial floor drain, two-part, Model H, according to EN 1253. Infinitely variable height and twist adjustment of attachment piece, without sealing ring. Inlet rim solid 25 x 8 mm, bonding flange on bottom of floor inlet. To achieve a high self-cleansing effect, the bottom of the housing
