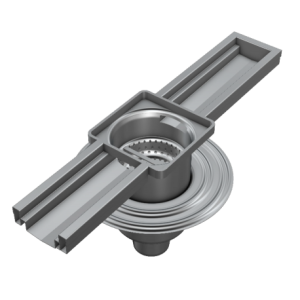

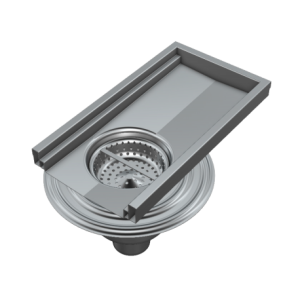

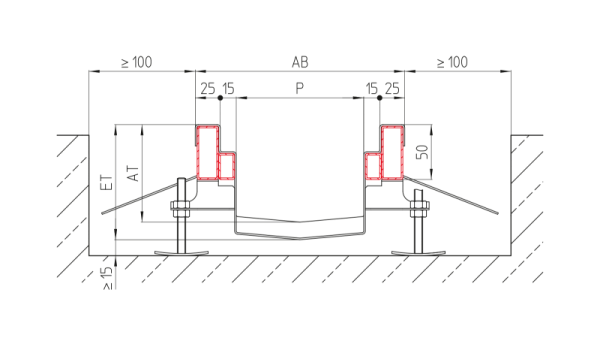

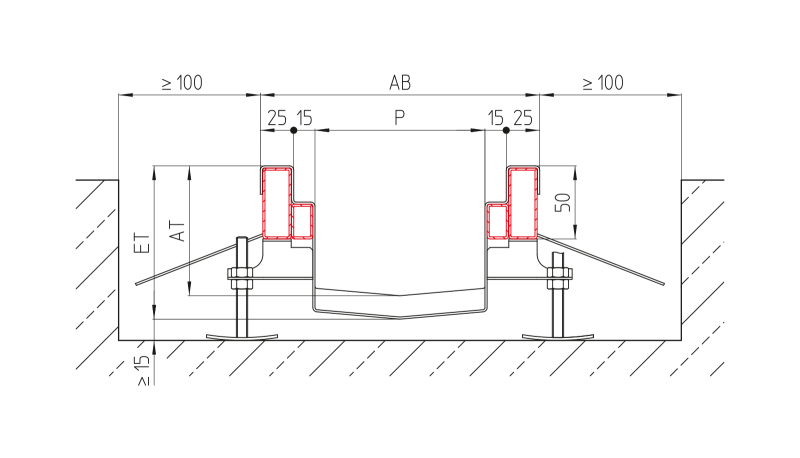

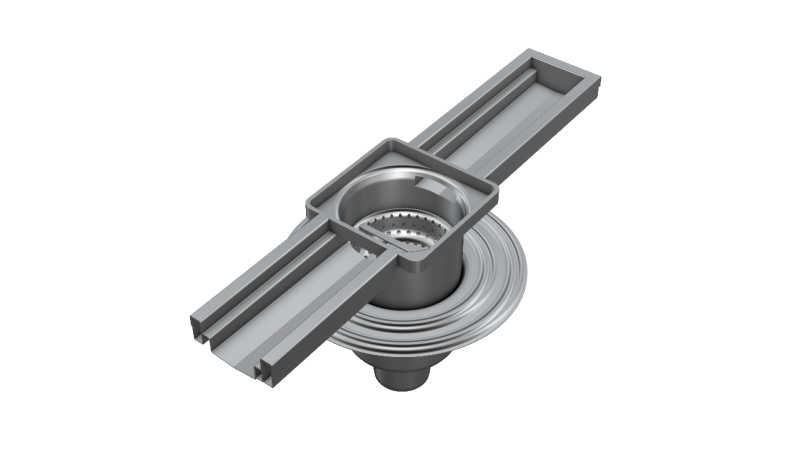

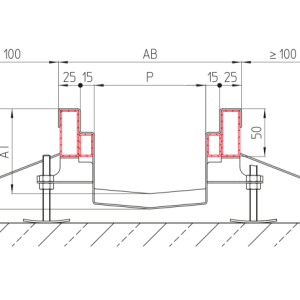

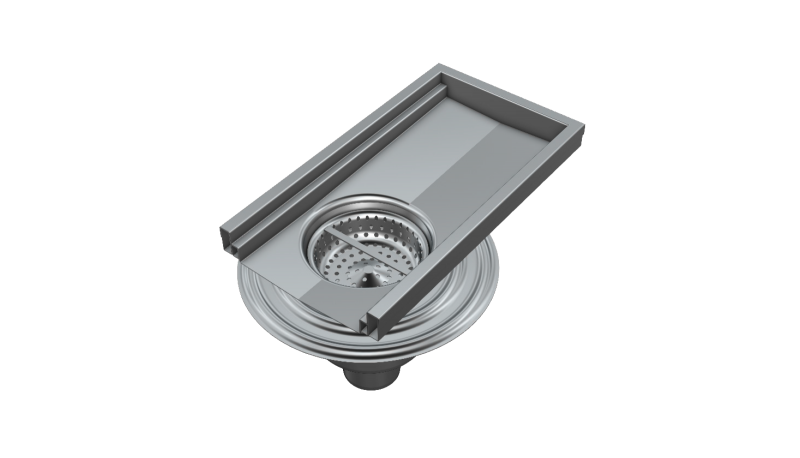

Industrial channel, Model IKR, edge protection and internal grate support edge reinforced with rectangular stainless steel profile, the outer rectangular profile is 50 mm high to enable a better join. With wall anchors every 500 mm all round and U-shaped assembly supports for force-fit inlet rim connection and adjustable height dowel installation feet every 1,000 mm. Fall 0.6%. Channel available welded, not flanged, with welded attachment piece / underwelded plug-in adapter. Surface grain blasted.
| Channel model | P [mm] | AB [mm] | AT 7) | Fall | ET [mm] |
| IKR-070-150 | 70 | 150 | 60 | 0,6 % | |
| IKR-090-170 | 90 | 170 | 60 | 0,6 % | |
| IKR-120-200 | 120 | 200 | 60 | 0,6 % | |
| IKR-170-250 | 170 | 250 | 60 | 0,6 % | |
| IKR-220-300 | 220 | 300 | 60 | 0,6 % | |
| IKR-320-400 | 320 | 400 | 60 | 0,6 % | |
| IKR-420-500 | 420 | 500 | 60 | 0,6 % |
Calculation ET: AT + L1 x 0,006 [AT; ET; L1 in mm]
Material: 1.4301 (AISI 304), 1.4571 (AISI 316 Ti)
Channel drain, single-part, Model RSKE, according to EN 1253, welded at the end of the channel.…
Channel drain, single-part, Model RSKE, according to EN 1253, centrally welded in the channel. With plug-in…
Channel drain, single-part, Model RSKE, according to EN 1253, centrally welded in the channel. With liftable…
• Stainless steel reinforced channel edges as standard
• No epoxy edge filling
• Improved strength, more hygienic and resists thermal movement
• Fall 0.6% for all channels
• 150mm up to 500mm standard widths
• Wide range of cover/grate options
• Anchor tags every 500mm
• Adjustable levelling feet every 1000mm
• Easy weld-free installation, flanged bolted connections
• Custom made for each project with short lead times
These floor drains are available in various sizes and outlet configurations for circular, square, and large square applications. They feature a fully welded stainless steel reinforced surround with no epoxy infill, a heavy-duty hinged bar cover with hold-open position, and a hygienically formed grate recess for easy cleaning. Compatible with WaterMark-certified plug-in traps, high-capacity baskets, and outlet strainers, they deliver durable and reliable drainage performance.
