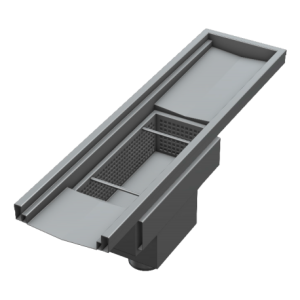

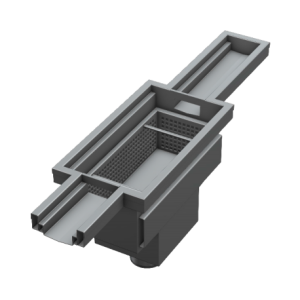

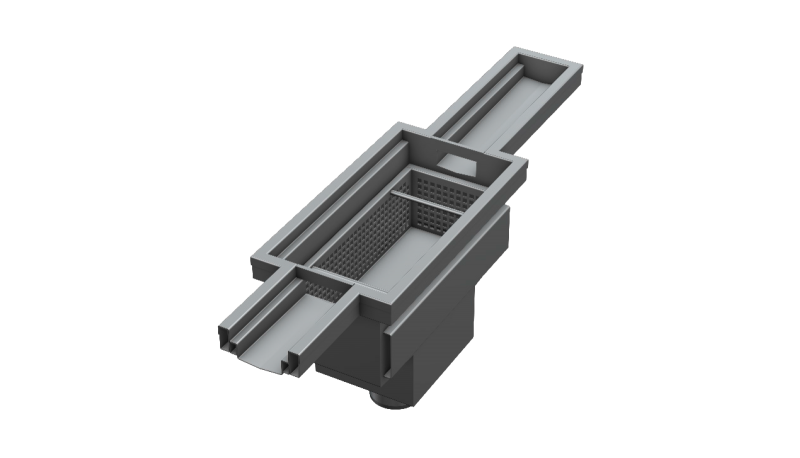

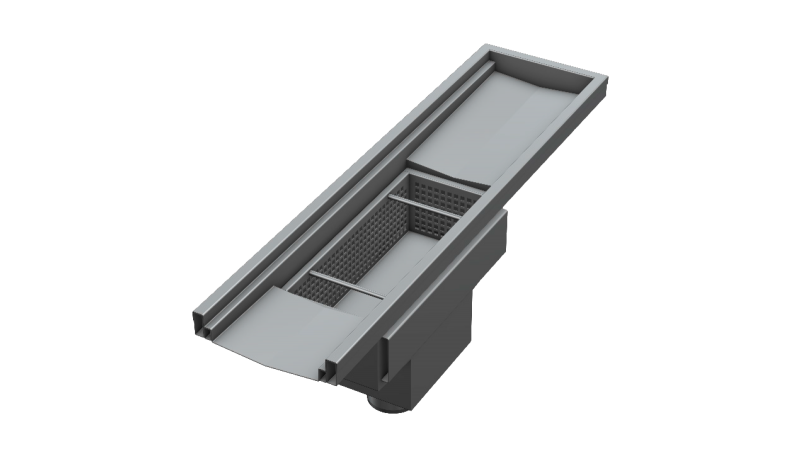

Channel drain RSKH-MIT-S

Channel drain, single-part, Model RSKH, according to EN 1253, welded at the end of the channel. With plug-in air trap and a large stainless steel silt box that overlies the water steel. Drain with gradients to the discharge. Edge protection reinforced with an internally mounted, welded rectangular profile and channel edge. Floor connection as channel. Vertical runoff support. Surface grain blasted.

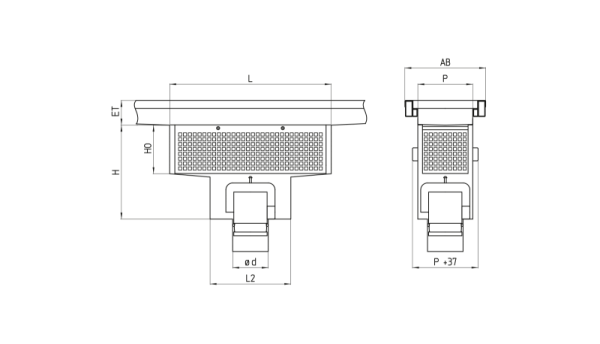

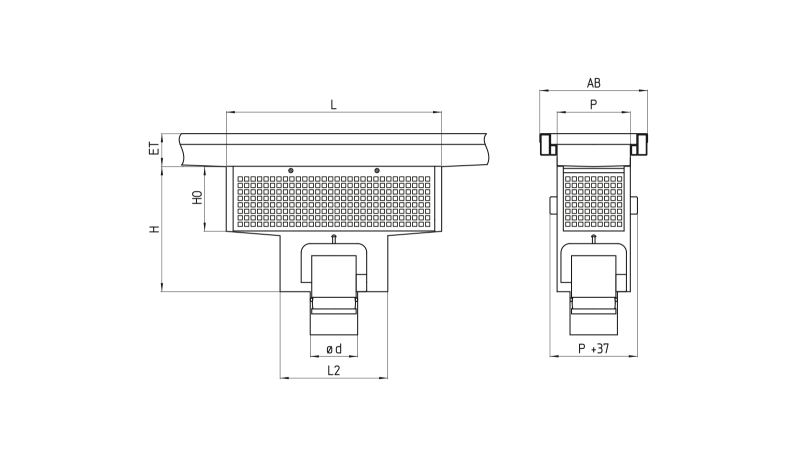

	Nominal size DN	Ø d [mm]	Profile P [mm]	AB [mm]	L [mm]	L2 [mm]	H [mm]	HO [mm]	Flow rate [l/s]	Silt box volume [l]
RSKH-090-070-MIT-S	70	75	90	170	400	200	290	150	> 1.5	3.0
RSKH-120-070-MIT-S	70	75	120	200	400	200	290	150	> 1.5	4.5
RSKH-170-100-MIT-S	100	110	170	250	500	250	290	150	> 2.8	9.1
RSKH-220-100-MIT-S	100	110	220	300	600	330	350	180	> 2.8	18.3
RSKH-220-150-MIT-S	150	160	220	300	600	330	350	180	> 8.2	18.3
RSKH-320-150-MIT-S	150	160	320	400	600	330	350	180	> 8.2	28.1
RSKH-320-200-MIT-S	200	200	320	400	600	330	360	180	> 12.5	28.1
RSKH-420-200-MIT-S	200	200	420	500	700	330	360	180	> 12.5	44.6
RSKH-420-250-MIT-S	250	250	420	500	700	430	360	180	> 20.2	44.6
