Channel drain RSKE-MIT-W

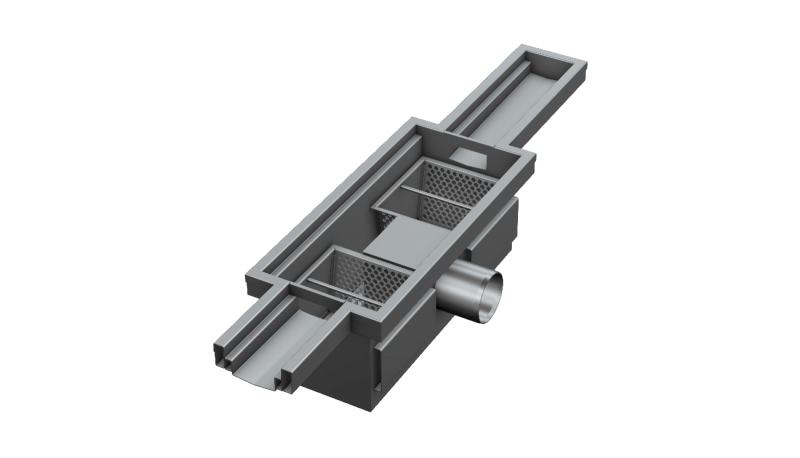

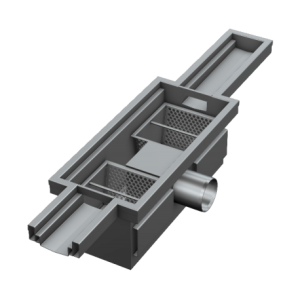

Channel drain, single-part, Model RSKE, according to EN 1253, welded at the end of the channel. With plug-in air trap and a large stainless steel silt box. Edge protection reinforced with an internally mounted, welded rectangular profile and channel edge. Floor connection as channel. Horizontal runoff support. Surface grain blasted.

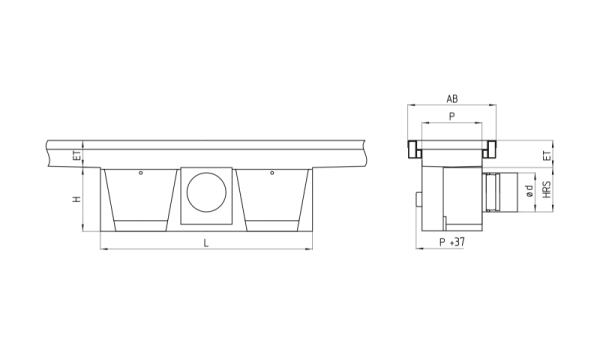

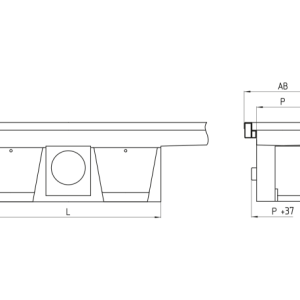

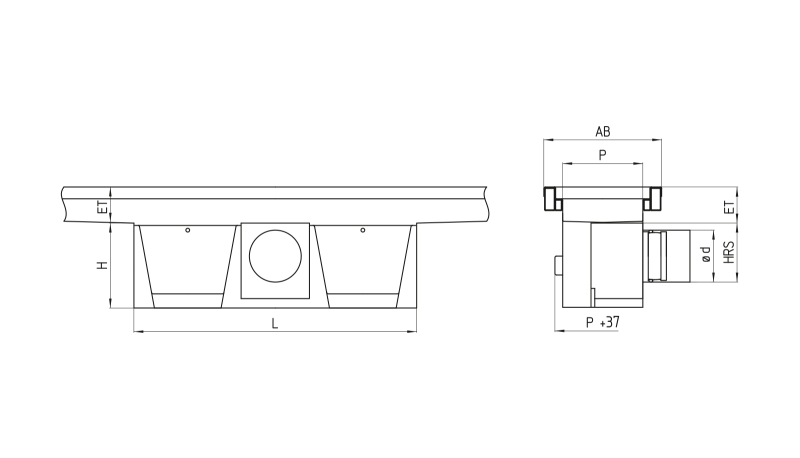

	Nominal size DN	Ø d [mm]	Profile P [mm]	AB [mm]	L [mm]	H [mm]	HRS [mm]	Flow rate [l/s]	Silt box volume [l]
RSKE-170-100-MIT-W	100	110	170	250	600	180	125	> 2.8	2 x 4.1
RSKE-170-150-MIT-W	150	160	170	250	700	210	150	> 8.2	2 x 4.1
RSKE-220-100-MIT-W	100	110	220	300	600	180	125	> 2.8	2 x 5.0
RSKE-220-150-MIT-W	150	160	220	300	800	210	170	> 8.2	2 x 7.4
RSKE-220-200-MIT-W	200	200	220	300	1000	250	225	> 12.5	2 x 8.7
RSKE-320-150-MIT-W	150	160	320	400	800	210	170	> 8.2	2 x 11.4
RSKE-320-200-MIT-W	200	200	320	400	1000	250	200	> 12.5	2 x 15.0
RSKE-420-200-MIT-W	200	200	420	500	aA	aA	aA	aA	aA
RSKE-420-250-MIT-W	250	250	420	500	aA	aA	aA	aA	aA
RSKE-420-300-MIT-W	300	315	420	500	aA	aA	aA	aA	aA
